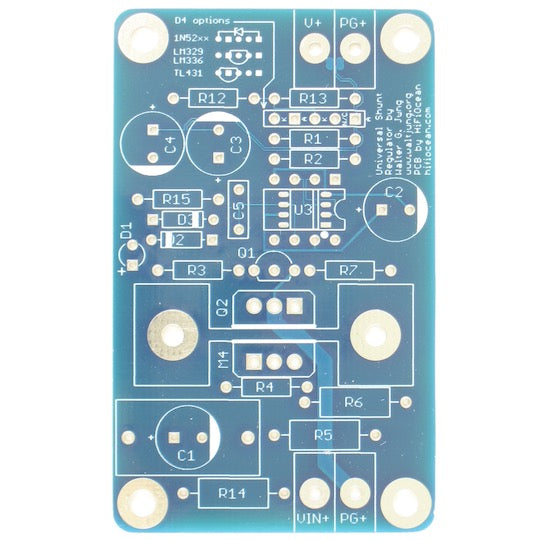

Universal Shunt Regulator Board (PCB only, no parts)

The Universal Shunt Regulator Board contains a high performance shunt voltage regulator optimized for audio use. It is suitable for powering hi-fidelity small signal audio circuitry.

The Universal Shunt Regulator Board implements the design by Walt Jung that first appeared in Walt Jung's AudioXpress interview of 10/2012.

• Bare board only.
• Parts are not included and need to be obtained separately.
• Assembly is required.

This board is being sold with Mr. Jung's kind permission, but in no way it is endorsed or supported by him.

• Schematic and discussion (at waltjung.org)
• Board size and component placement
• Part list (BOM)
• Shared Project at Mouser (includes parts for various output voltages)
• The PM829 voltage reference circuit (at waltjung.org)
